The Drainman bilge pump is powered by the tugs created on the mooring line from wind, surf and waves. All natural, with no electricity that can fail. Easy to Use: The lightweight Drainman is easy to install and lock into place. It can be fitted to mooring lines on all sides of your boat, even between your boat and dinghy. Durable: The Drainman is made with high-quality materials that can withstand forces up to 15,000 Newton. Works Around the Clock: The Drainman can pump up to 2,500 liters of water every twenty-four hours. The Drainman is self-priming and has a suction height of up to 2.5 meters and a suction length of up to 8 meters. Sunlight Coverage: The neoprene cover protects the pump from sunlight and wear and tear.
Installation guide - Drainman
Drainman is easy to carry and install.

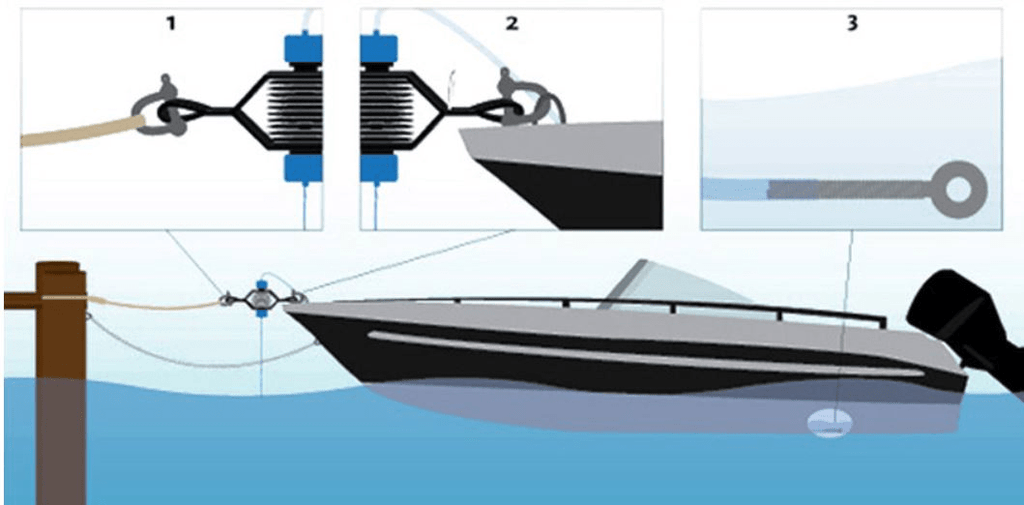

1. The Drainman features two loops, one on either side. One loop is connected to a mooring line by means of a shackle or a snap-hook, the line is then attached to the mooring point, for instance on a jetty. Mooring springs should not be used.
2. The loop on the other side is connected to the boat, using a shackle or a snap-hook, such that the Drainman is attached between the boat and the mooring point. Make sure that the hose and label are facing up when installing, and that the pump is kept above the surface of the water.
3. Place the sieve of the suction hose in the lowest point of the boat (the keelson), where it can easily drain the water. For increased stability, a weight may be placed at the end of the suction sieve loop.
